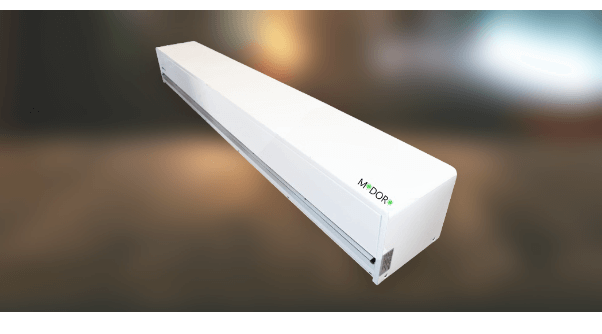

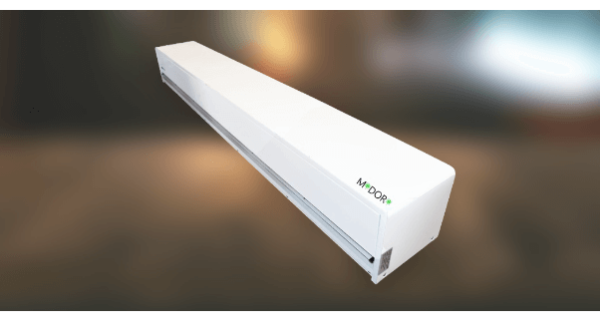

MIDORI Air Curtains - YOSHIMASA

NEW, STRONGER, MORE ELEGANT AIR CURTAIN

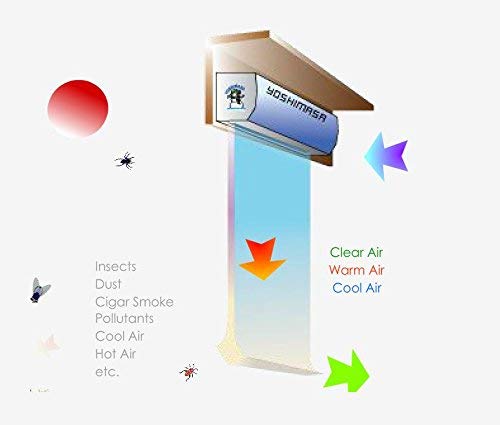

YOSHIMASA Air Curtains are designed for professional use to keep the desired clean air and temperature inside not to be contaminated by outside air and bad materials such as flying bugs, dust, smoke, odor, insects, poisonous gases, and any possible pollutants. It is commonly installed on both interior and exterior doorways and helps to save energy and keeps sanitary inside climate.

Category:

Description

FEATURES & BENEFITS

  • Simple installation
  • Comes with a Magnetic switch AND a Remote Control
  • Balanced Dual shaft Motors
  • Clean white color available
  • 2 different air speeds control (Hi & Low)
  • From 36” to 72” Wide Door(install more than two units for bigger doors)
  • Keeps clean, better sanitary climate.
  • Prevents loss of cool or warm air by keeping outdoor air from entering it.
  • Saves energy by keeping desired temperature (lowers heating and cooling costs)

DESIGN SPECIFICATIONS

↑BOTTOM↑

Model Net Dimensions
Exterior (W×D×H)		 Gross Dimension Max Input Power Input Power Max. Wind Speed Air Volume
CFM		 Noise
(dBA)		 Net Weight Gross
Weight
MIDORI-36 35 1/2″×8 1/2″ × 9 1/4″ 38″ x 13″ x 11″ 480 AC 110V 60Hz 20 (m/s) 1450 ≤48 36 lbs 42 lbs
MIDORI-42 39 3/8″×8 1/2″ × 9 1/4″ 42″ x 13″ x 11″ 480 1450 ≤48 40 lbs 44 lbs
MIDORI-48 47 1/4″×8 1/2″ × 9 1/4″ 49″ x 13″ x 11″ 610 1930 ≤49 44 lbs 51 lbs
MIDORI-60 59 1/16″×8 1/2″ × 9 1/4″ 62″ x 13″ x 11″ 780 2420 ≤52 55 lbs 66 lbs
MIDORI-72 70 7/8″×8 1/2″ × 9 1/4″ 73″ x 13″ x 11″ 920 2900 ≤54 69 lbs 75 lbs
YOSHIMASA reserves the right to change specifications without prior notice.

CONFORMS TO NSF/ANSI 37


CLICK HERE FOR AIR CURTAIN INSTALLATION GUIDE

FACTORY WARRANTY
1 Year Limited Warranty(Excluding Magnetic-door switch, Remote Control)　
– 1 Year Parts & Labor
