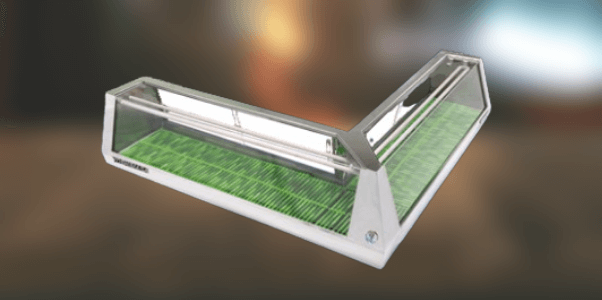

NUDO "L-Shape" - YOSHIMASA

Trapezoid Profile – easy integration with sushi bar
Mirror-Polished Stainless Steel Body – elegant and fashionable look
Large Water Drain – 1” diameter for easier and faster cleaning
Slanted Backdoor Design – beneficial to sushi chefs
Fully Visible Foodzone – Better exhibition
1” Deep Pan Floor – convenient for food storage
2 Upper Evaporators – provides better cooling
Heavy-Duty Clear Plexiglass Doors – safer operation
Large Custom Sizes are Possible – such as 21’ long
90 Day Limited Warranty
NSF Certified
External condensing units are available for purchase
^Click here for more information
AEV regulator is available for purchase
FREE CONSULTATIONS FOR CUSTOM-SIZE
ANY SIZE COMBINATIONS are possible

Description

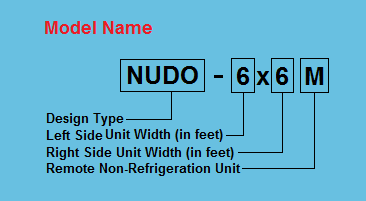

NUDO L-SHAPE UNIT – SPECIFICATIONS
MODEL	DIMENSIONS†	WEIGHT‡	MATERIALS	BACKDOORS	PROFILE	AUTOCAD	PDF
NUDO-3x3M	36″x36″W x 13″D x 11″H	112 lbs	304 Mirror Stainless Steel Stainless Steel Evaporator Plexiglass Polyurethane Foam	4 pcs		NUDO-3x3M	NUDO-3x3M
NUDO-4x4M	48″x48″W x 13″D x 11″H	130 lbs		4 pcs		NUDO-4x4M	NUDO-4x4M
NUDO-5x5M	60″x60″W x 13″D x 11″H	141 lbs		8 pcs		NUDO-5x5M	NUDO-5x5M
NUDO-6x6M	72″x72″W x 13″D x 11″H	158 lbs		8 pcs		NUDO-6x6M	NUDO-6x6M
NUDO-7x7M	84″x84″W x 13″D x 11″H	177 lbs		8 pcs		NUDO-7x7M	NUDO-7x7M
NUDO-CxCM	CUSTOM SIZE, REMOTE	–		–		–	–
Each NEW unit comes with following Accessories: • Stainless Steel Mat – 1 set • Vinyl Hose w/ Clamp – 1 pcs • Thermometer – 1 ea • Water Plug – 1 ea • Drain Cap – 1 ea

† Exterior Dimensions ‡ Net Weight
* YOSHIMASA reserves the rights to change specifications without prior notice.
