Curved Glass Refrigerated Sushi Display Case | YOSHIMASA

DESIGN FEATURES

  • Power Supply – AC 115V, 60Hz, 1Ph
  • Slanted Backdoor Design – beneficial to sushi chefs
  • Fully Visible Foodzone – Better exhibition
  • 1” Deep Pan Floor – convenient for food storage
  • 2 Upper Stainless Steel Evaporators – provides better cooling
  • Large Water Drain – 1” diameter for easier and faster cleaning
  • Oversized Compressor – more effective and longer lasting
  • Heavy-Duty Clear Plexiglass Doors – safer operation
  • LED Interior Light
  • 5 Year Limited Warranty <-Click for Details
  • NSF Certified

OPERATION NOTES

  • Please No Overnight Storage
  • Clean the Air Filter Every 2 Weeks
  • Do Not Block the Air Pathway
  • Do Not Use a Pressure Washer to Clean
  • Maintain Ambient Temperature 68-77°F

OPTIONAL ACCESSORIES

  • LED Interior Light with Dimmer
  • Adjustable Stainless Steel Legs
  • Tempered Safety Glass Door

Description

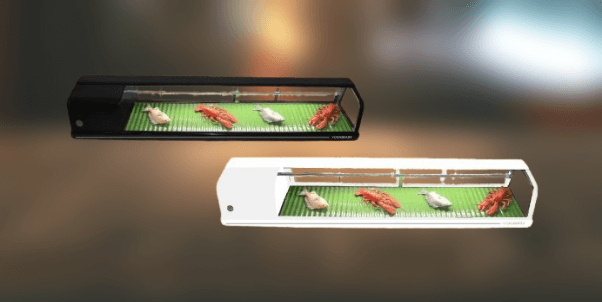

The YMSC “Curved Glass” Model is the most attractive self-contained refrigeration unit on the market. The YMSC’s new design creates a more visable foodzone, built with more glass. The back side of the case is set at a an angle, a convient design prefered by sushi chefs. The YMSC is customizable, available in various lengths.

YMSC SELF-CONTAINED UNIT – SPECIFICATIONS

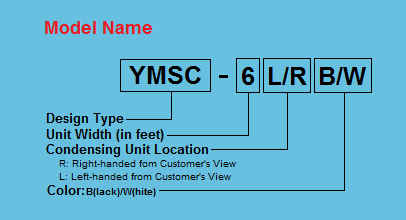

MODEL DIMENSIONS WEIGHT MATERIALS BACKDOORS AUTOCAD  PDF
YMSC-3L/B/W or 3R/B/W 35¼”W x 13¾”D x 11¾”H 71 lbs Stainless Steel Evaporator

Plexiglass

Polyurethane Foam

2 pcs 3L/BW   3R/BW 3L/BW   3R/BW
YMSC-4L/B/W or 4R/B/W 47¼”W x 13¾”D x 11¾”H 96 lbs 2 pcs 4L/BW   4R/BW 4L/BW   4R/BW
YMSC-5L/B/W or 5R/B/W 59¼”W x 13¾”D x 11¾”H 100 lbs 2 pcs 5L/BW   5R/BW 5L/BW   5R/BW
YMSC-6L/B/W or 6R/B/W 71¼”W x 13¾”D x 11¾”H 115 lbs 4 pcs 6L/BW   6R/BW 6L/BW   6R/BW
YMSC-7L/B/W or 7R/B/W 83¼”W x 13¾”D x 11¾”H 129 lbs 4 pcs 7L/BW   7R/BW 7L/BW   7R/BW
Each NEW unit comes with following accessories:
 Stainless Steel Mat – 1 set    Vinyl Hose w/ Clamp – 1 pcs  Thermometer – 1 ea    Water Plug – 1 ea   Drain Cap – 1 ea

† Exterior Dimensions ‡ Net Weight
* YOSHIMASA reserves the rights to change specifications without prior notice.

Click Here For -> Spec Sheet
